The OM6XXX is a power-optimized true system-on-chip (SOC) solution for both Bluetooth low energy and proprietary 2.4GHz applications. It integrates a high performance and low power RF transceiver with Bluetooth base band and rich peripheral IO extension. OM6XXX also integrates power management unit (PMU) to provide high-efficient power management. It targets 2.4GHz Bluetooth low energy systems, proprietary 2.4GHz systems, Human-Interface Devices (keyboard, mouse, and remote control), sports and leisure equipment, mobile phone accessories and consumer electronics.

OM6XXX on-chip Bluetooth system compliant with version 5.3.

The chip integrates up to 64MHz high-performance MCU, DMA, GPIO, SPI, UART, Timer, Watchdog, supports 32MHz external crystal, integrates multi-purpose max 12-bit ADC.

The OM6XXX integrates on chip 80K SRAM, 256-bit EFUSE and supports user defined IDE system on chip SFLASH MCU development and JTAG software upgrade.

Features

RF transceiver

• -99dBm sensitivity @ 1Mbps GFSK
• -96dBm sensitivity @ 2Mbps GFSK
• TX Power -30 to +10dBm
• AGC (Auto Gain Control)
• RSSI (1dB Resolution)

CPU and debug interface

• ARM® Cortex™-M4, max 64MHz
• SWD interface

Memory

• EFUSE: 256-bit
• SRAM: 80KB
• Serial Flash: 512KB
• I-Cache RAM: 8KB

Clocks

• 32MHz & 32.768kHz crystal oscillators
• 32MHz & 32.768kHz RC oscillators

Link Controller

• BT 5.3 LE PHY, link controller
• Proprietary 2.4-GHz link controller

Power Management

• Single power supply voltage: 1.71V ~ 3.6V
• 3.0mA peak current in RX
• 4.0mA peak current in TX (0dBm)
• 1.2uA in sleep mode (with 16K RAM retention, 32KHz RC)
• Integrated DCDC BUCK Converter

Software

• Compatible with Bluetooth 5.3
• Supported data rates: 1Mbps, 2Mbps (BLE)
• Multiple configurable air data rate from 25Kbps to 2Mbps (2.4G)
• Supports mesh network
• Sample applications and profiles
• Supports OTA

Peripherals

• Up to 25 General Purpose I/O pins
• 8 x DMA
• 2 x UART
• 1 x I2C interface (master only)
• 2 x SPI interface
• 1 x 16-bit Timer/Counter with 4 Compare/Capture/PWM channels
• 2 x 16-bit Timer/Counter with 4 Compare/PWM channels (These two timers can combine to one 32-bit PWM timer)
• 1 x 32-bit Real Time Counter with 3 Compare channels
• 1 x 16-bit Low Energy Timer with 2 Compare/PWM channels
• 1 x Watchdog Timer
• 8 channels single-end 12-bit GPADC, up to 333.3ksps (precision and sample rate can be configured)

Security

• AES HW encryption
• Support AES-256/AES-128 key
• HW Random Number Generator

Work Environment

• -40 ℃ ~ +85 ℃

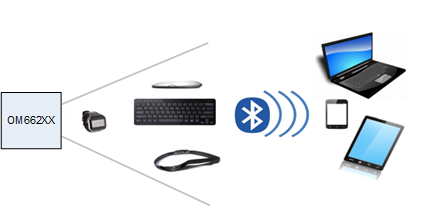

Applications

The OM6XXX integrated circuit has a fully integrated radio transceiver and base band processor for Bluetooth® Smart. It can be used as an application processor as well as a data pump in fully hosted systems.

• RF remote control
• Electronic shelf labels
• Smart home devices
• Computer peripheral and I/O devices
